Details

Advanced Container Ramp

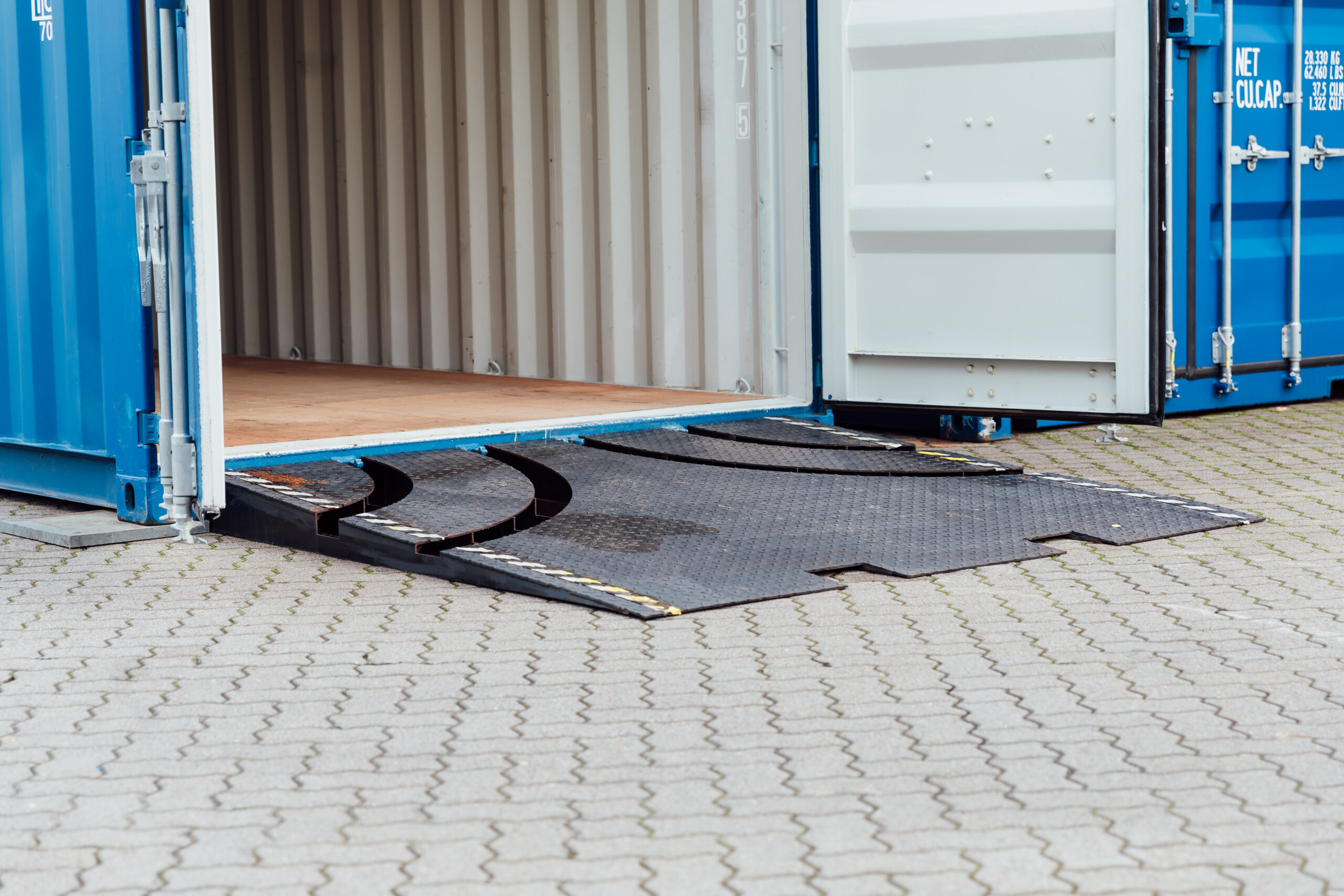

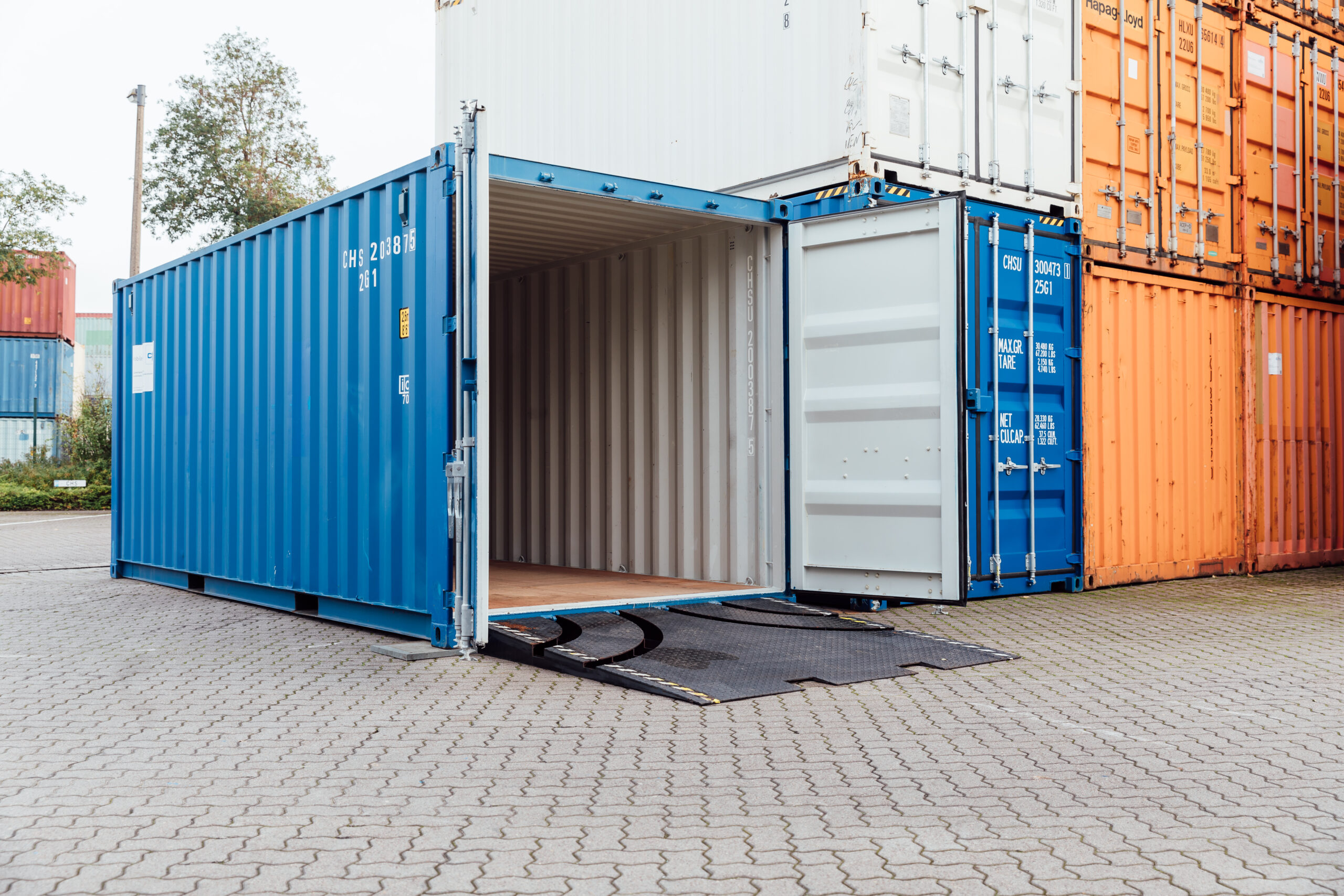

This specially designed container ramp made of solid steel enables loading and unloading without having to move the ramp. Thanks to its innovative construction, container doors can be fully opened and closed even while the ramp remains positioned in front of the container.
Manufactured under the highest quality standards, this ramp features a robust welded steel construction, ensuring durability, high load capacity, and long service life. Perfect for logistics, industry, ports, and all applications where containers are frequently loaded and unloaded.

Advantages
• Heavy-duty steel construction: manufactured to the highest quality standards

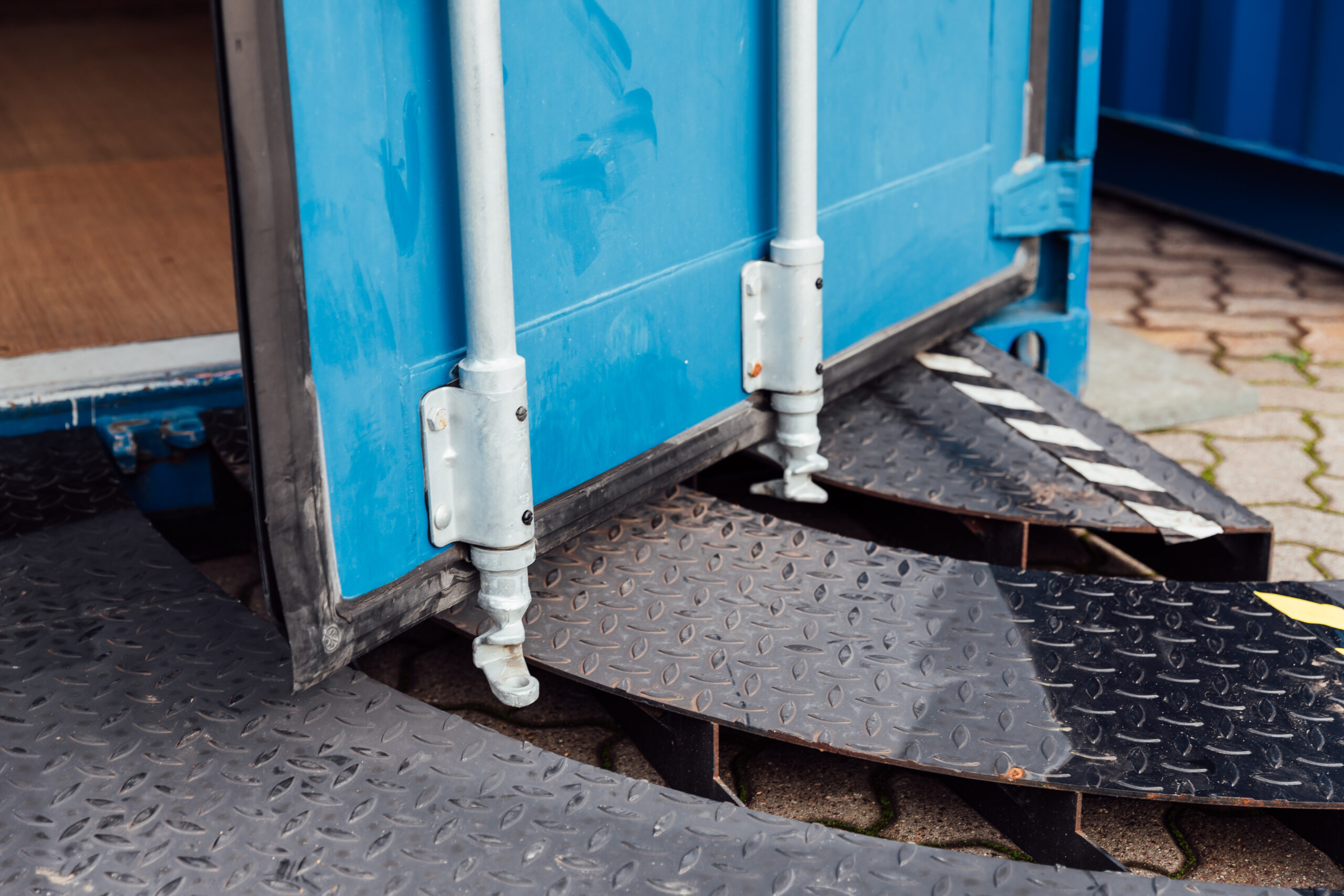

• Innovative design: doors remain fully operable despite the ramp in position
• High load capacity: durable welded frame for continuous use
• Practical handling: no need to move the ramp when opening/closing doors
• Built to last: robust design for demanding industrial applications

Specifications:
• Product: Container ramp, special design
• Item number: CHS-1042366
• Drawing/Project number: CHS-18102022
• Total weight: 166.54 kg (367 lb)

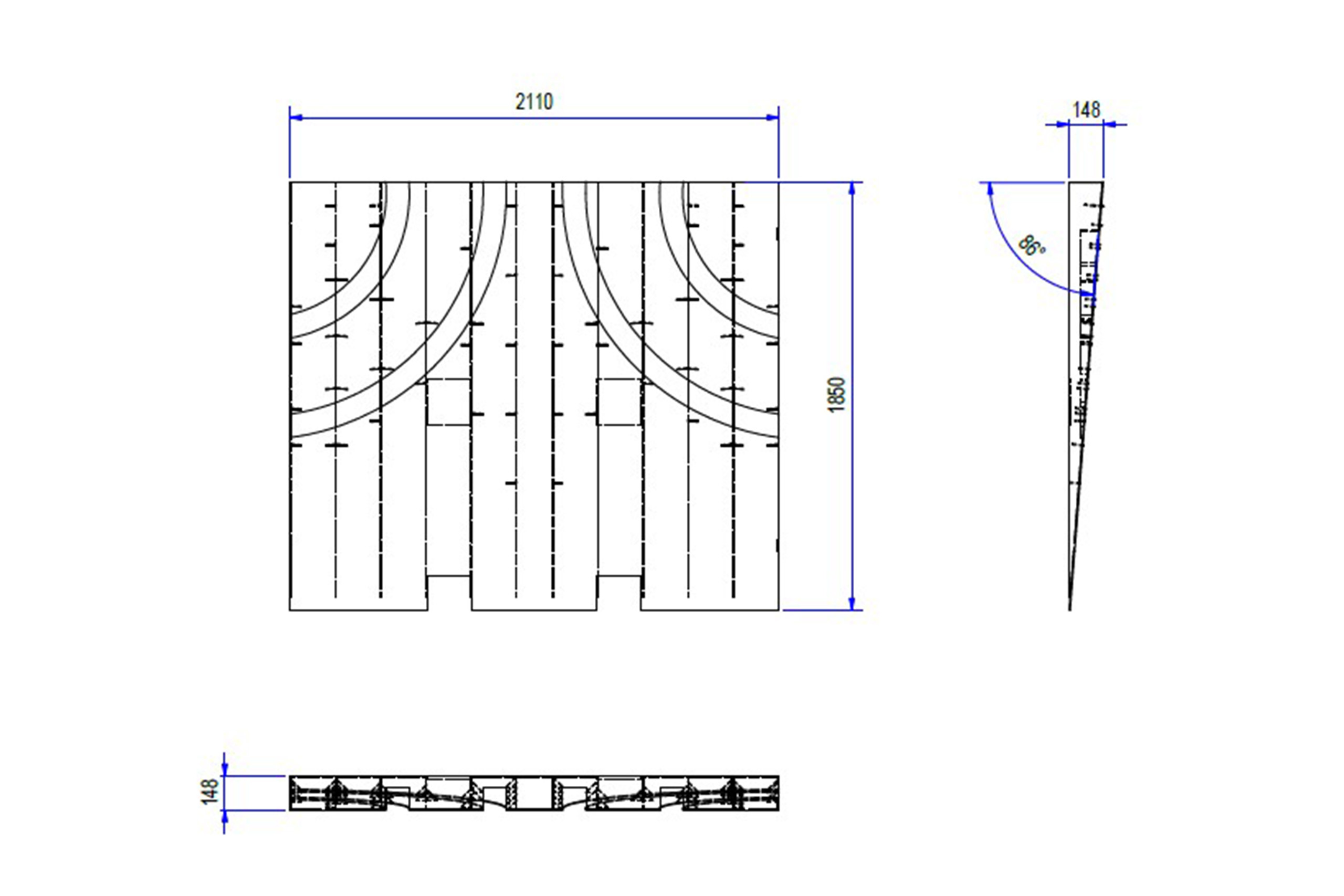

Dimensions:
• Overall length: 2,110 mm (83.07 in)
• Overall width: 1,850 mm (72.83 in)
• Height: 148 mm (5.83 in)
• Inclination angle: 8.6°

Purchase New Container Ramps from CHS Container Group
At CHS Container Group, we offer high-quality container ramps tailored to your needs:
• Sturdy construction – engineered for heavy loads and frequent use
• Safety-focused design – non-slip surfaces and secure positioning
• Compatibility – suitable for 20 ft, 40 ft, and high cube containers
• Fast delivery – throughout Germany, Europe, and beyond
With decades of experience, CHS Container Group stands for quality, reliability, and customer-oriented service. Choose this solid steel container ramp for maximum flexibility and efficiency in container handling – open and close doors without obstruction, engineered for strength, quality, and everyday reliability.

For any products under 40ft long:

When buying a container online, you can choose to have your container delivered with or without a crane.

With Crane

Your container will be delivered on a truck-mounted crane, allowing the driver to lift and position the container without additional offloading equipment.

To facilitate a truck-mounted crane delivery, you will need:

• Length Clearance: 18.75m (61.5ft)
• Height Clearance: 4m (13ft)
• Width Clearance: 3.65m (12ft)

Without Crane (Standard Chassis)

If you select delivery without a crane, your container will be delivered on a flat chassis with no built-in offloading equipment. You will therefore be responsible for offloading the container yourself using the appropriate heavy-duty equipment.

To facilitate a delivery without a crane, you will also need:

• Length Clearance: 18.75m (61.5ft)
• Height Clearance: 4m (13ft)
• Width Clearance: 3.65m (12ft)

To learn more about these delivery methods, consult our shipping container delivery guide.

For products 40ft or longer:

When buying a container online, you can choose to have your container delivered by side-loader or standard chassis.

With a Side-Loader

Your container will be delivered on a specialized truck called a side-loader (sometimes also known as a side-lifter). This vehicle has hydraulic arms that lift the container off the trailer and set it down beside the truck.

To facilitate a side-loader delivery, you will need:

• Length Clearance: 18.75m (61.5ft)
• Height Clearance: 4m (13ft)
• Width Clearance: 3.65m (12ft)

Standard Chassis

If you select delivery by standard chassis, you will be responsible for lifting and placing your shipping container on the ground with the appropriate heavy-duty equipment.

To facilitate delivery on a standard chassis, you will also need:

• Length Clearance: 18.75m (61.5ft)
• Height Clearance: 4m (13ft)
• Width Clearance: 3.65m (12ft)

To learn more about these delivery methods, consult our shipping container delivery guide.
