Details

Advanced Container Ramp

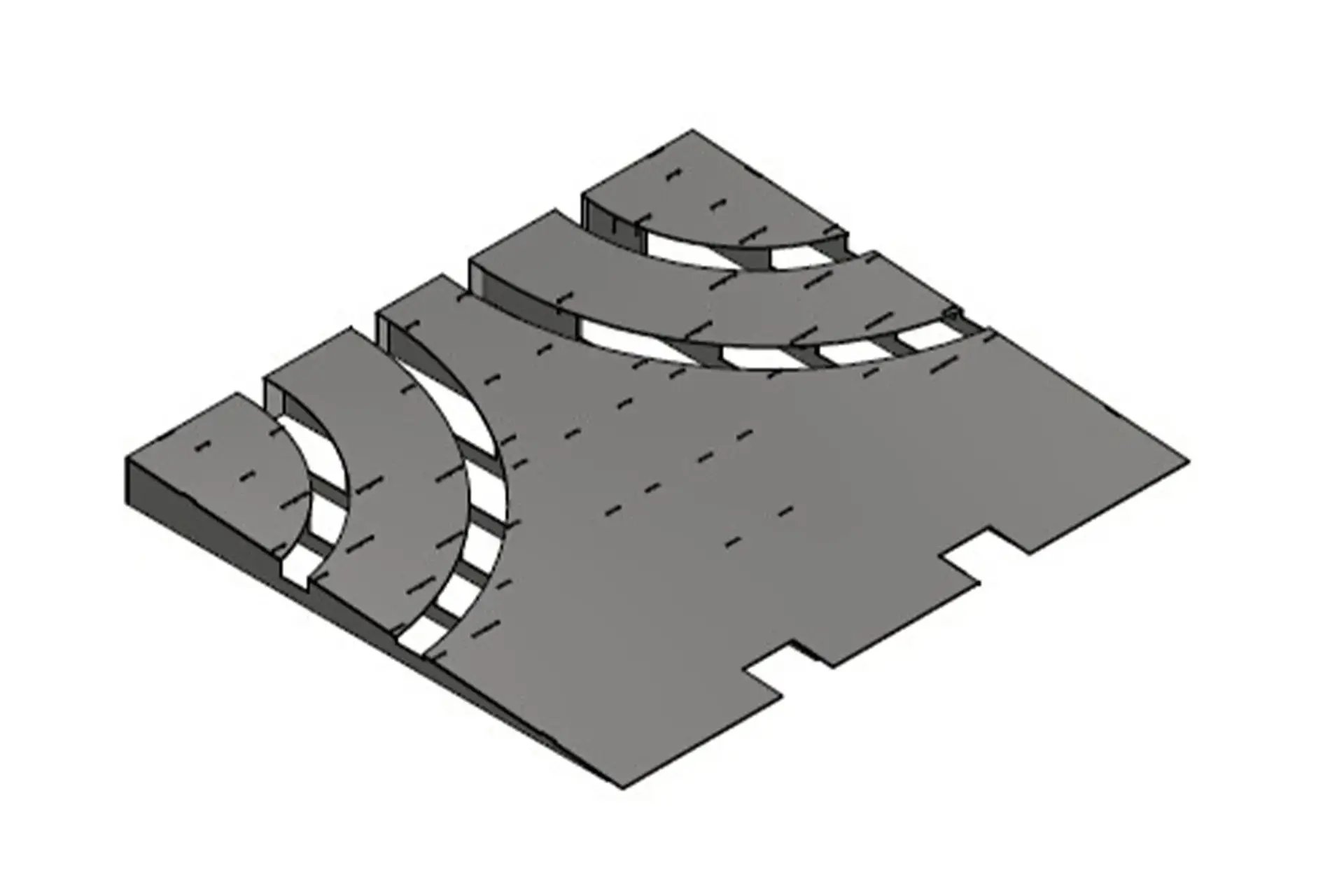

This specially designed container ramp made of solid steel enables loading and unloading without having to move the ramp. Thanks to its innovative construction, container doors can be fully opened and closed even while the ramp remains positioned in front of the container.
Manufactured under the highest quality standards, this ramp features a robust welded steel construction, ensuring durability, high load capacity, and long service life. Perfect for logistics, industry, ports, and all applications where containers are frequently loaded and unloaded.

Advantages
• Heavy-duty steel construction: manufactured to the highest quality standards
• Innovative design: doors remain fully operable despite the ramp in position
• High load capacity: durable welded frame for continuous use
• Practical handling: no need to move the ramp when opening/closing doors
• Built to last: robust design for demanding industrial applications

Specifications:
• Product: Container ramp, special design
• Item number: CHS-1042366
• Drawing/Project number: CHS-18102022
• Total weight: 166.54 kg (367 lb)

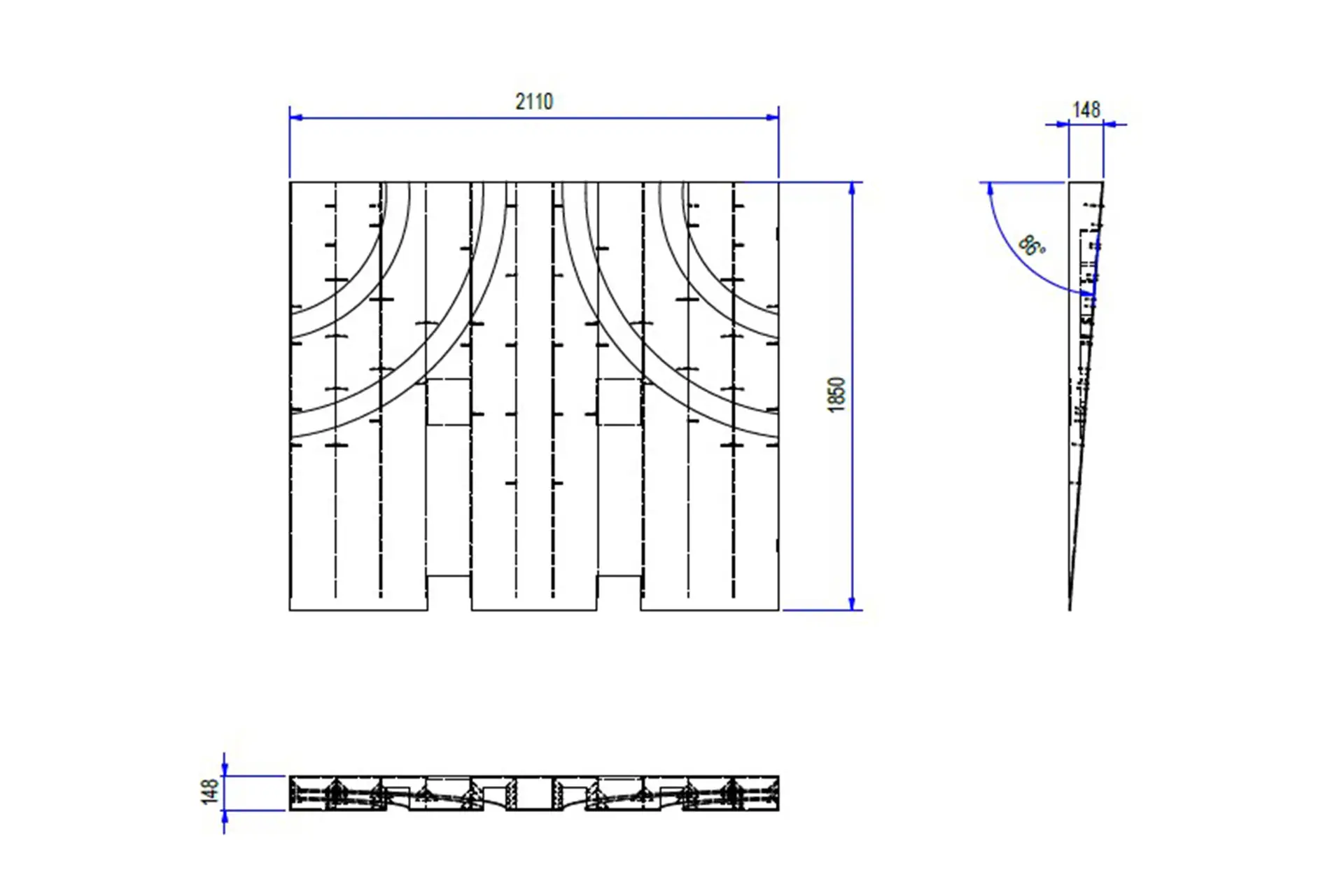

Dimensions:
• Overall length: 2,110 mm (83.07 in)
• Overall width: 1,850 mm (72.83 in)
• Height: 148 mm (5.83 in)
• Inclination angle: 8.6°

Purchase New Container Ramps from CHS Container Group
At CHS Container Group, we offer high-quality container ramps tailored to your needs:
• Sturdy construction – engineered for heavy loads and frequent use
• Safety-focused design – non-slip surfaces and secure positioning
• Compatibility – suitable for 20 ft, 40 ft, and high cube containers
• Fast delivery – throughout Germany, Europe, and beyond
With decades of experience, CHS Container Group stands for quality, reliability, and customer-oriented service. Choose this solid steel container ramp for maximum flexibility and efficiency in container handling – open and close doors without obstruction, engineered for strength, quality, and everyday reliability.

When buying a container online, you can choose to have your container delivered with or without a crane.

Pick-Up

A member of our team will reach out to coordinate your pick-up. With this option, you are responsible for ensuring you have a suitable vehicle and the proper equipment to safely offload your container on your property.

Tilt-Bed Delivery

If you select tilt-bed delivery, your shipping container will be delivered on a tilt-bed trailer. This is a specialized piece of equipment that is towed by either a hot shot truck or standard truck cab. Then, the front of the bed is raised so the container slides safely to the ground as the driver slowly drives forward.

To facilitate delivery on a tilt-bed trailer, you will need:

• Length Clearance: 100ft (30.5m)
• Height Clearance: 15ft (4.5m)*
• Width Clearance: 12ft (3.65m)

Note: Any low-hanging wires at the drop-site must be at least 18ft off the ground for the trailer to tilt safely.

To learn more about these delivery methods, consult our shipping container delivery guide.
