General description

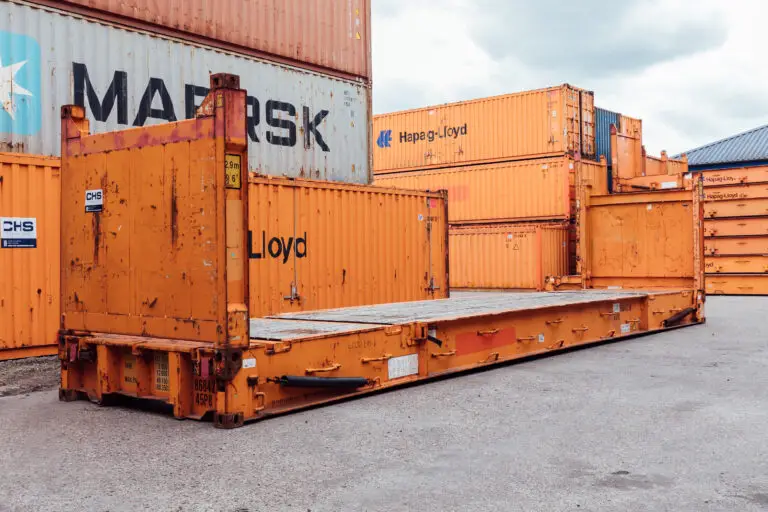

The 40 foot flat rack container is an excellent choice for the transportation of bulky and oversized goods that do not fit into conventional containers. With its open design, this container allows flexible handling and optimum access to the transported goods.
Equipped with numerous, heavily dimensioned lashing options on the corner posts, side rails and floor, the container guarantees optimum load securing using ropes, chains and nets. The lashing points on the side rails are designed for a maximum load of up to 2000 kg (4410 lbs), in some cases even up to 4000 kg (8820 lbs).
Flexible designs
Collapsible flats
With folding end walls, these flatracks enable cost-effective empty transportation and space-saving storage, as several flatracks can be stacked on top of each other.
Fixend Flats
These flatracks are equipped with end walls that sink into recesses in the flatrack floor when folded, allowing the flatrack to be used as a platform.
Technical data
Dimensions
| Side | outside in inches | inside in inches |
|---|---|---|
| Length between the end walls | 480.0 | 465.9 |
| Length between the corner pillars | 461.42 | |
| Width between the corner pillars | 95.8 | 88.19 |
| Width between the stanchions | 87.80 | |
| Height | 102.01 | 77.87 |
| Type | Gross weight |
|---|---|
| Fixend Flat | 87,02 Ibs |
| Collapsible Flat | 85,98 Ibs |
Please note the dimensional tolerances!
Optional additional services
Forklift pockets
Some flatracks have forklift pockets to facilitate the use of forklift trucks.
